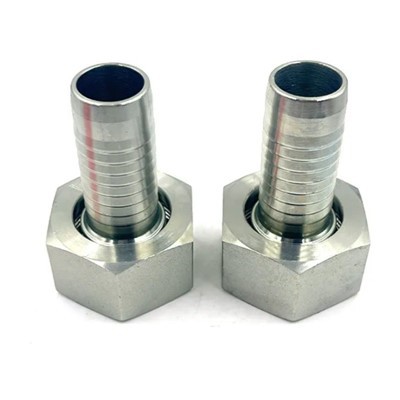

20511 Fi Metrik 24 lou kawotchou Fitting
Metrik fi 24 degre kòn o-ring ht (iso 12151-2 - DIN 3865)
Dekri teren
PATI NO.: 20511 / 20511-T
Deskripsyon:Metrik fi 24 degre kòn O-bag HT, Connector Dwat Koutyon Ke
Espesifikasyon:
Metrik fi 24 degre kòn o-ring ht (iso 12151-2 - DIN 3865)
| PATI NO. | Fil e | Kawotchou fè | Tib od | O bag | Dimansyon | |||
| Dn | Priz | A | C | S2 | ||||
| 20511-14-04 | M14X1.5 | 6 | 4 | 6 | O04.5X1.5 | 28.5 | 1.1 | 19 |
| 20511-16-04 | M16X1.5 | 6 | 4 | 8 | O06.5X1.5 | 29 | 1.5 | 22 |
| 20511-16-05 | M16X1.5 | 8 | 5 | 8 | O06.5X1.5 | 29 | 1.5 | 22 |
| 20511-18-06 | M18X1.5 | 10 | 6 | 10 | O08.0X1.5 | 29 | 2 | 24 |
| 20511-20-08 | M20X1.5 | 12 | 8 | 12 | O10.0X1.5 | 31.5 | 2.5 | 27 |
| 20511-22-08 | M22X1.5 | 12 | 8 | 14 | O11.0X2.0 | 31.5 | 2.5 | 27 |
| 20511-30-12 | M30X2 | 20 | 12 | 20 | O16.3X2.4 | 39 | 3 | 36 |
| 20511-18-04T | M18X1.5 | 6 | 4 | 10 | O08.0X1.5 | 26.5 | 2 | 22 |
| 20511-20-06T | M20X1.5 | 10 | 6 | 12 | O10.0X1.5 | 28.5 | 2.5 | 24 |
| 20511-22-06T | M22X1.5 | 10 | 6 | 14 | O11.0X2.0 | 28.5 | 2.5 | 27 |
| 20511-24-06T | M24X1.5 | 10 | 6 | 16 | O13.0X2.0 | 28.5 | 2.5 | 30 |
| 20511-24-08T | M24X1.5 | 12 | 8 | 16 | O13.0X2.0 | 30 | 3 | 30 |
| 20511-30-10T | M30X2 | 16 | 10 | 20 | O16.3X2.4 | 36 | 3 | 36 |
| 20511-36-12T | M36X2 | 20 | 12 | 25 | O20.3X2.4 | 36 | 3 | 41 |
| 20511-36-14T | M36X2 | 22 | 14 | 25 | O20.3X2.4 | 36 | 3 | 41 |
| 20511-42-12T | M42X2 | 20 | 12 | 30 | O25.3X2.4 | 40 | 5 | 50 |
| 20511-42-16T | M42X2 | 25 | 16 | 30 | O25.3X2.4 | 41 | 5 | 50 |
| 20511-52-20T | M52X2 | 32 | 20 | 38 | O33.3X2.4 | 44 | 6.5 | 60 |
| 20511-52-24T | M52X2 | 40 | 24 | 38 | O33.3X2.4 | 44 | 6.5 | 60 |
Remak: 1. Pou itilize ak tiyo trese. 2. Si ou itilize ak kawotchou espiral, nimewo seri kawotchou Fitting se 10312- xx-xx; 3. Tout pati a pa gen okenn. Pi wo pase yo nan asye kabòn. Si kòmann -nan adaptè asye pur, tanpri sifiks "ss". Pou egzanp: 10311-12-04 Ss vle di asye pur Fitting. 4. tou ka pwodwi entegre kawotchou Fitting.
Pwodwi prensipal nou yo:
Steel threaded ekipman kawotchou idwolik ak adaptè tiyo, sucn kòm metrik, BSP, BSPT, NPT, JIC, ORFS, fil SAE.
